Before your data speaks visually, it must first find its order. Slick BI dashboards and visualizations look effortless, but they owe everything to data that’s been wrangled, organized, and tied together in a well-crafted data warehouse.
Setting one up, however, is a significant undertaking requiring considerable investment, in-depth architectural expertise that combines mastery of both foundational and modern best practices, and a sharp eye for the traps where projects can stall.
Our senior experts offer a hands-on guide through this multi-faceted terrain. With it, you’ll get an overall idea on how to build a data warehouse that provides a strong foundation for all levels of data analytics.
Key highlights
Building a data warehouse (DWH) involves turning scattered, inconsistent corporate data into a unified, analytics-ready foundation that fuels BI and AI initiatives. Choosing the right architecture approach (Inmon, Kimball, or Data Vault) and deployment model (cloud, hybrid, or on-prem) determines how scalable, flexible, and maintainable the warehouse will be.
Most challenges in DWH projects come down to data quality, so strong data validation, governance, and continuous monitoring are what make the warehouse truly trustworthy.
What is a data warehouse?
A data warehouse is a centralized repository where all your company’s current and historical data, scattered across multiple systems, comes to sit down together. In other words, it’s a single, governed, and coherent source of truth that analytics and reporting can rely on.
You might wonder: Why not just query those systems directly? The problem is, their data is often inconsistent: formats, time zones, naming conventions, in other words, ways of tracking the very same entity can differ.
Before information lands in a warehouse, it’s cleaned from noise and duplicates, normalized into a consistent schema, enriched with contextual metadata, and sometimes aggregated to different levels of data granularity, for example, raw sales transactions might be rolled up into daily totals per store or monthly revenue per region, to suit different analytical purposes. Once a unified view of corporate data is facilitated within a warehouse, your data analytics initiatives, be it business intelligence systems or AI-driven solutions, get a solid, dependable foundation.
To deliver reports that are not just visually appealing but genuinely reliable, a well-designed data warehouse must enforce multiple layers of validation. These checks ensure that data arrives accurately. Let’s assume there are ten orders in the CRM. When the DWH pulls these, it should capture all of them along with the payments linked to each order from the financial system. A mature DWH automatically validates that every order and its matching payment have been successfully ingested, and that no data is duplicated. If any inconsistencies are detected, the system flags them before they cascade into reporting
Data warehouses vs data lakes vs data lakehouses vs database vs data marts
There are many ways to store data, and the choice of suitable ones usually comes down to one question: what does the business expect to get from it? Driven by the type(s) of data stored and the way it’s organized, a tangle of terms of different data storage systems has emerged. Let’s untangle it.
Database is a structured collection of data used for day-to-day operations and transactional processes. It can be of two types: relational (~structured tables with predefined relationships) and non-relational, or NoSQL, (handle semi-structured or unstructured data like documents or JSON files).
Data warehouse is essentially a relational database, but it’s designed to store preprocessed data from various corporate databases, mainly for analytical purposes.
Data lakes can be described as data warehouses where no strict rules for data schema design or preprocessing apply. It’s a great place to dump all sorts of raw data (structured, semi-structured, or unstructured) from an unlimited number of data sources in a quick way to clean and organize later.
Data lakehouses combine the discipline of a data warehouse with the flexibility of a data lake. If a business needs a single environment for both analytics-ready data and advanced data science workloads, data lakehouses are the way to go.
Data mart is basically a subset of a data warehouse that provides data for specific needs of a particular business unit, for example for HR, sales, or marketing teams.
Why might companies need to build a data warehouse?
Sooner or later, every business runs into the same problem: data piles up across different systems, scattered and disconnected, making it hard to understand what’s actually happening in the company. That’s usually when the C-suite decides they need to keep the big picture in focus. In practice, this is the moment when most BI projects get the green light.
Getting data into a BI tool quickly and reliably and then opening the door to historical, real-time, predictive, prescriptive, in short, every kind of insight, is exactly what a solid data warehouse is built for.
But apart from faster and more reliable decision-making across the organization, consolidating enterprise data brings side benefits:
Improved collaboration: teams across departments can quickly access and confidently work with the same curated datasets.
- Single, trustworthy version of truth: everyone is aligned as data quality, consistency, and accuracy are maintained across all systems and reports.
- Operational efficiency: less manual work reconciling or cleaning data.
- Better compliance and governance: it’s easier to track data lineage, enforce data policies, and meet regulatory requirements.
- Smoother integration with new tools: simpler and more reliable connections to any corporate systems or AI/ML models.
Data warehouse design approaches

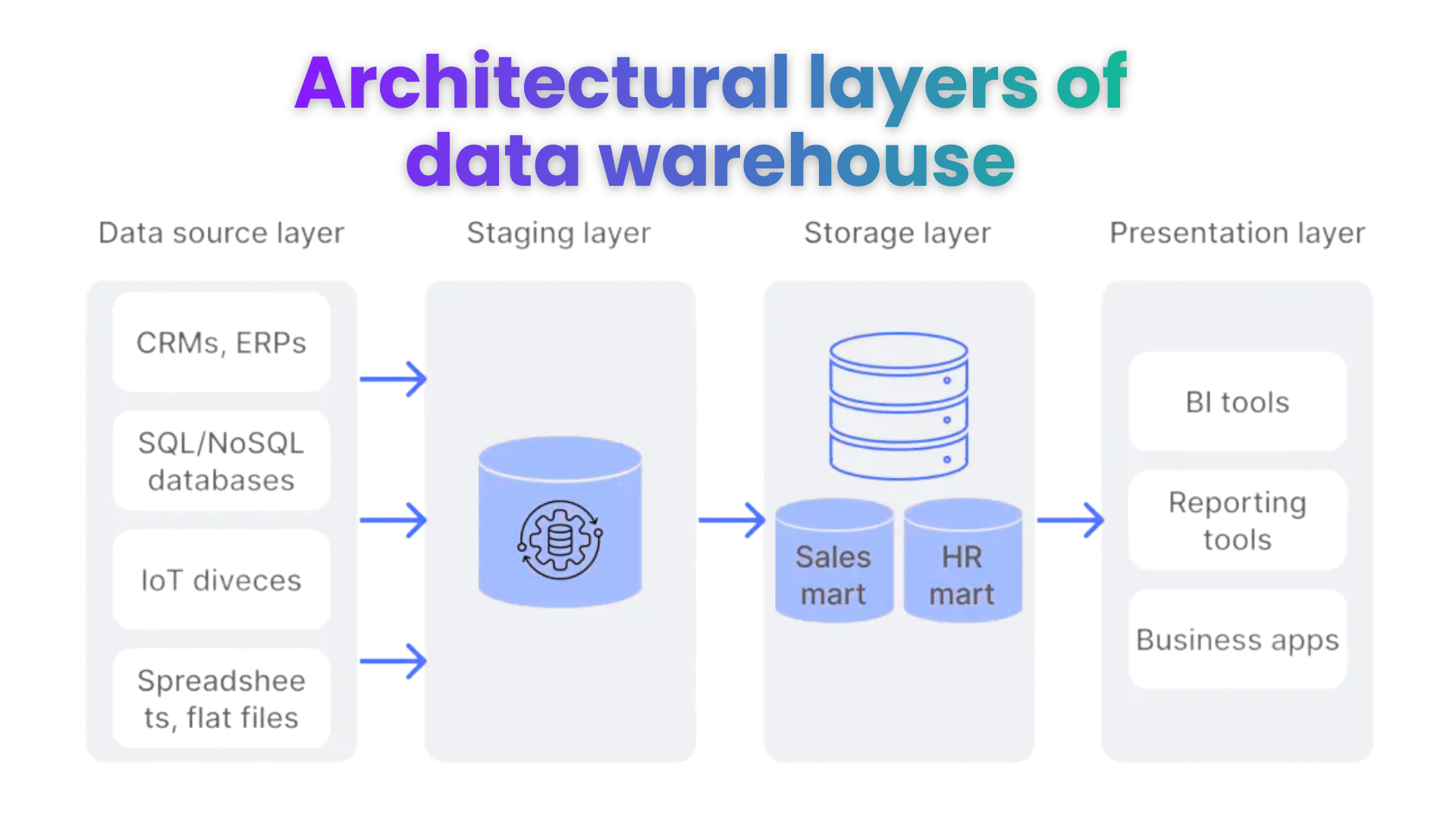

Before comparing design approaches, it helps to map what a warehouse is made of. From a functional perspective, which focuses on the data lifecycle within the warehouse, the architecture breaks into four layers:
- Source layer: an entry point of the data warehouse architecture, where data from databases, corporate systems, external APIs, and other sources originates.
- Staging layer: an intermediate transition area that temporarily stores data as it moves from source systems toward the warehouse. This is where quality checks, error assessment, and integrity validation happen to prevent inconsistencies, duplicates, missing values, or anomalies from reaching the storage layer.
- Storage layer / warehouse layer: a central repository where processed, cleaned and structured data is stored for long-term use.
- Presentation layer / consumption layer: a final layer, where users access the data via user-friendly interfaces within BI tools or data visualization platforms.
Depending on how these layers are distributed, a data warehouse architecture can be:
- Single-tier. Everything, from source to consumption layer, exists in a single tier.
- Two-tier. A presentation layer is separated.
- Three-tier. Source, storage, and presentation layers have their own isolated tiers.
As data sources grow more diverse, analytics more complex, and user concurrency higher, the need for separation also increases. While a single- tier architecture works fine for tiny warehouses (<100 GB), large, high-complexity storage systems benefit from a three-tier architecture, which is more scalable, performant, and manageable. With the layers of a data warehouse unpacked, here are the common modeling approaches and how they shape the architecture.

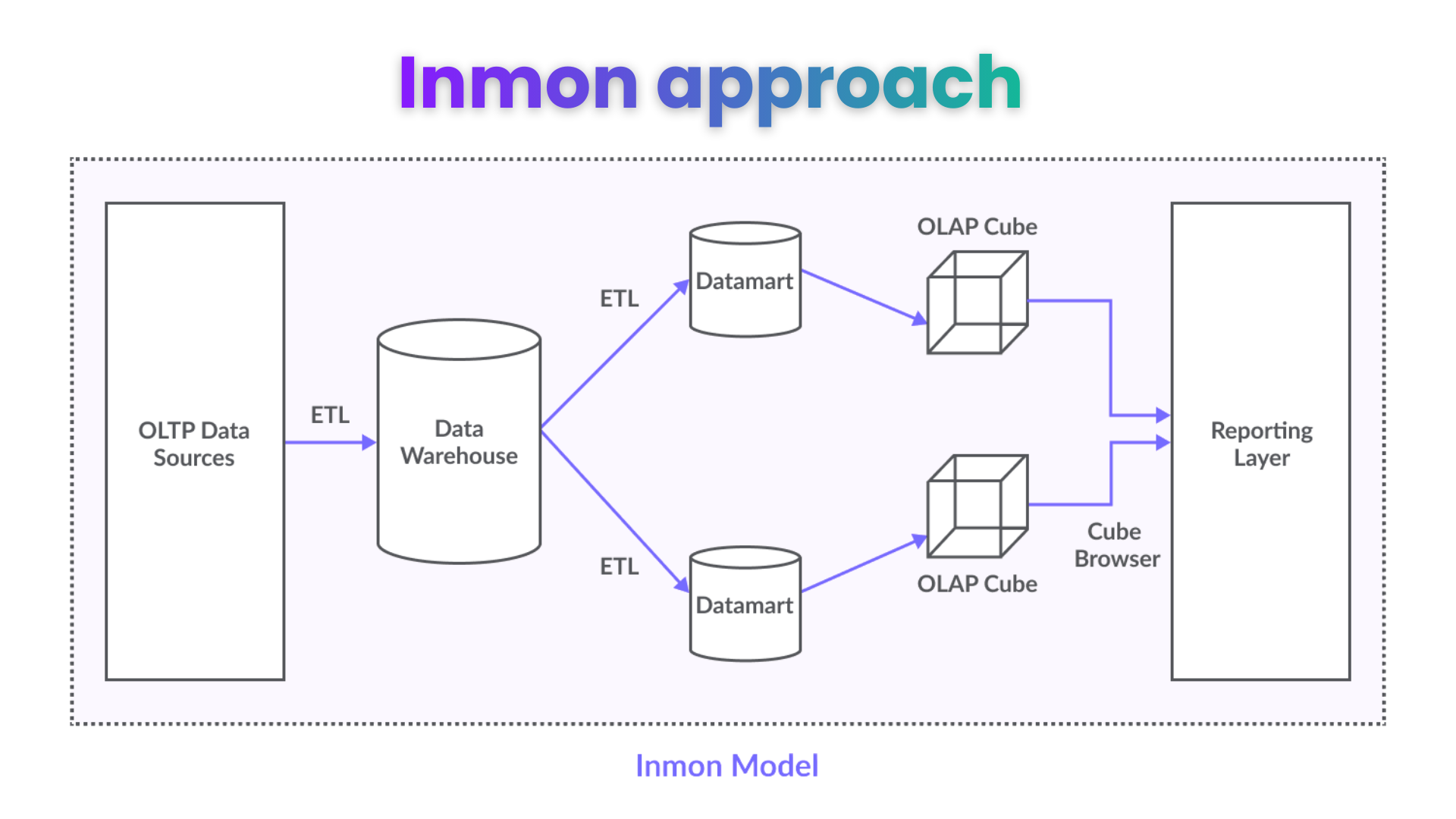

Inmon (top-down)
The Inmon approach employs a schema strategy centered on normalized 3NF (Third Normal Form) structures. Data is organized by concept: each subject area (customers, orders, products) exists in its own table with carefully structured relationships through primary and foreign keys.
While 3NF schemas ensure data integration and consistency, they’re not designed for direct business user access. Extracting insights from normalized tables requires query structures that are too complex, which makes them less suitable for end-user analytics without additional transformation layers.

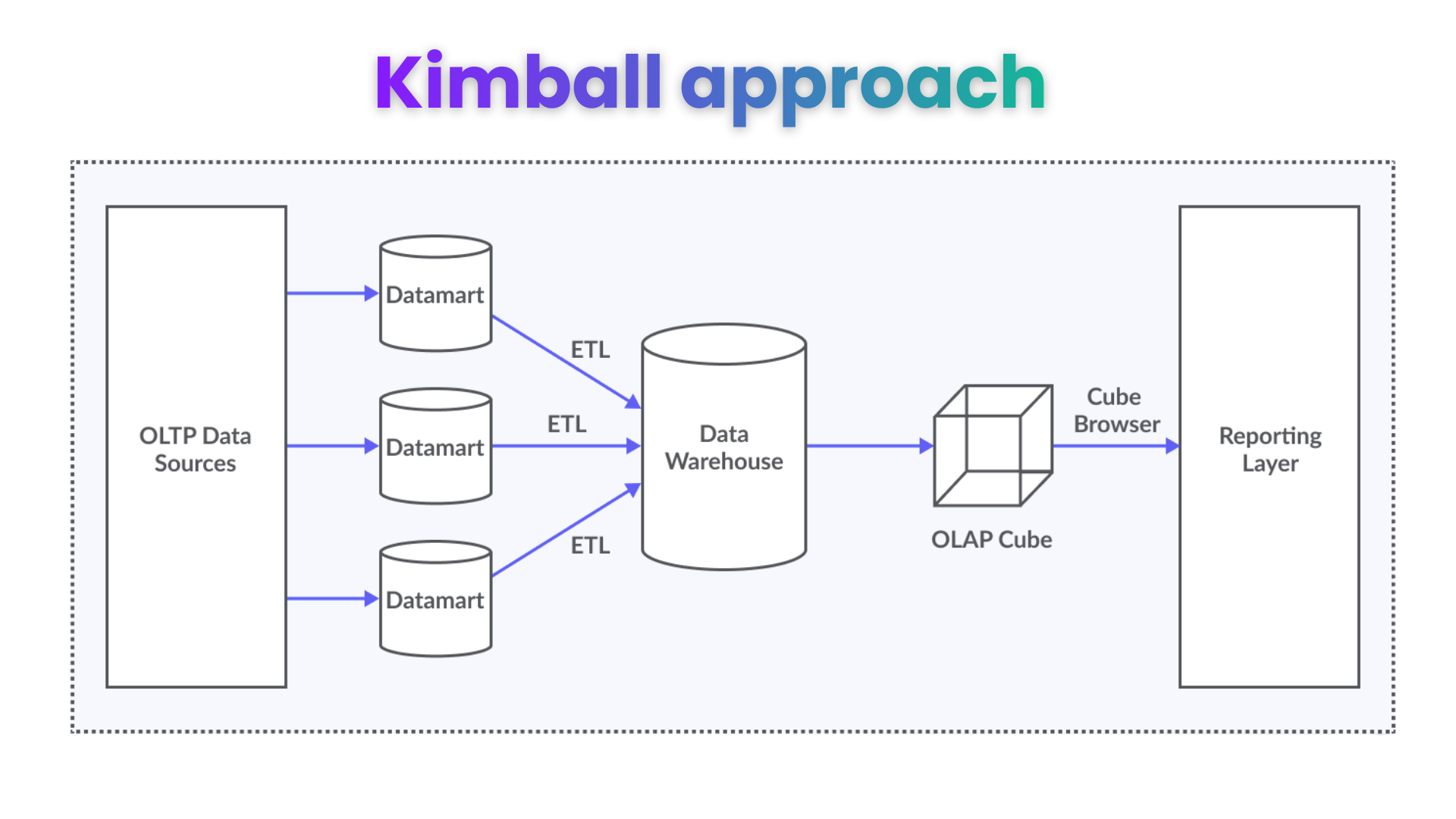

Kimball (bottom-up)
As opposed to Inmon’s, a bottom-up approach created by Ralph Kimball focuses on creating data marts initially, then integrating them into a cohesive data warehouse. Fundamentally, it’s built around dimensional modeling, which prescribes the use of star schemas or snowflake schemas. Those dimensional schemas allow for rapid query execution and user-friendly analysis due to their inherent advantages:
- high performance on relational databases
- flexibility to slice and dice data easily
- extensibility to accommodate business changes
Data vault (DV)

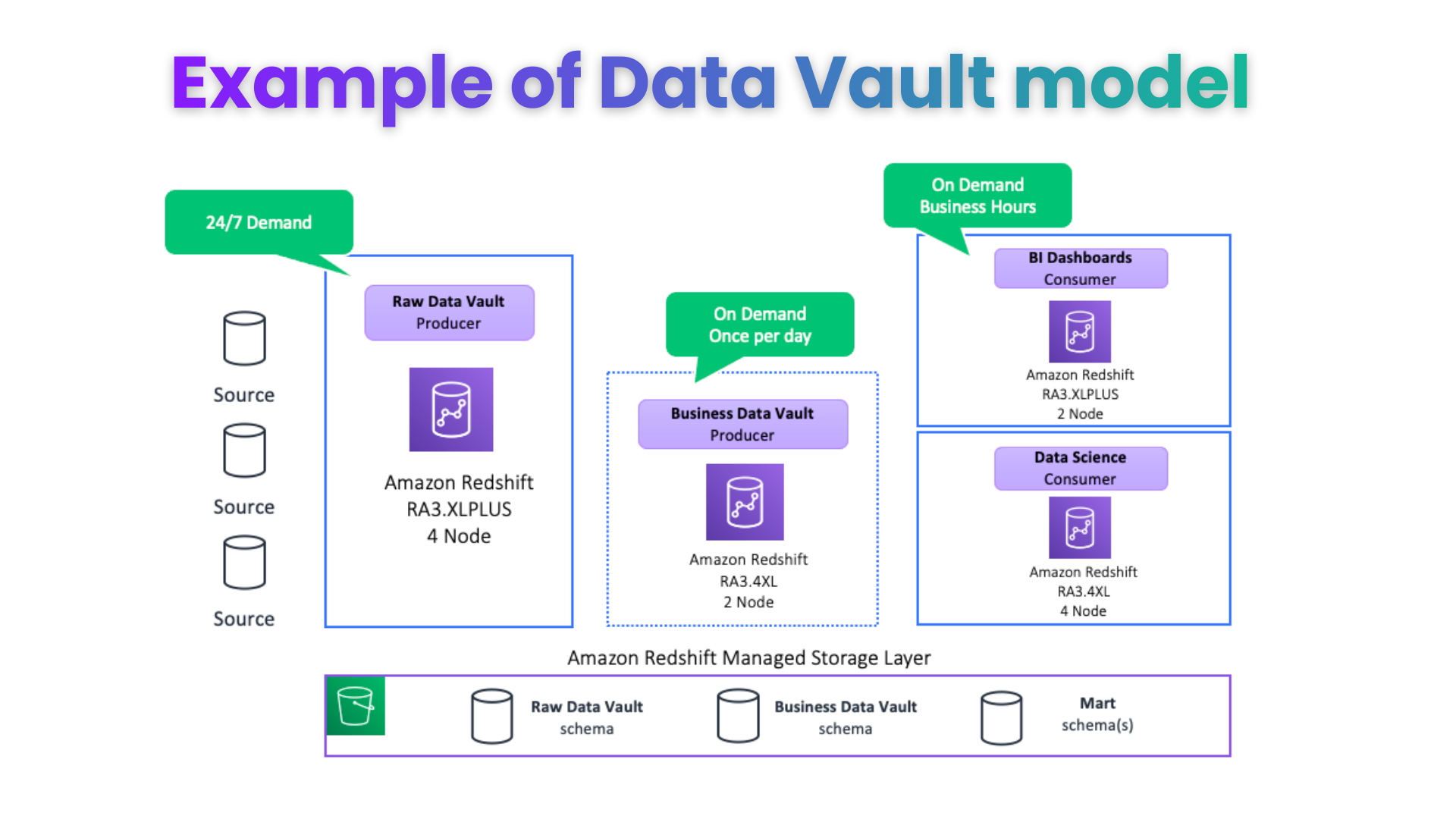

However, today, organizations most often turn to a third data modeling approach – Data Vault, introduced by Dan Linstedt. It’s considered a hybrid model, as it combines elements of Inmon’s enterprise-wide, normalized architecture and Kimball’s subject-area-focused, dimensional design.
A distinct modular schema structure beneath this approach consists of:
- Hubs, containing core business concepts identified by business keys and surrogate keys
- Links, representing associations between hubs
- And satellites, holding descriptive attributes grouped by source or change frequency.
Such a structure is built so that adding new data sources doesn’t require model reconstruction. Query efficiency is accompanied by flexibility, scalability, and rapid adaptability of new business relationships.
Four steps to setting up a data warehouse
Even though every project has its own flavor, these are the steps you need to generally follow when creating a data warehouse.
1. Discovery. The discovery phase is where the whole foundation gets set. Everything that comes after, from design to deployment, rests on it. The first thing to nail down here is the business objectives the company is trying to reach. Pain points, priorities, and expectations are mapped against how processes currently operate and which data sources are available.
When a company has hundreds of data sources, it takes time to dig into what exists in each and how it’s meant to support analytical needs. Jumping straight into building a data warehouse without these exploratory activities is a recipe for costly missteps caused by poorly designed data models or redundant ETL/ELT pipelines.
With every source of data examined inside out, you then decide on the number of tiers, how data flows between layers, and where data transformation happens (whether to use ETL or ELT further).
Besides, here you determine whether the warehouse will be deployed on-premises, in the cloud, or using a hybrid environment. Although a fully on-premises deployment is rare for modern projects, it remains a highly reliable option when full ownership and control of all data is a must, for example, in strict data compliance environments.
For most organizations, though, cloud or hybrid setups offer greater scalability, faster deployment, and lower operational overhead, while still allowing tight control over critical data where necessary. The market is full of cloud-based solutions like Snowflake, Amazon Redshift, Google BigQuery, etc., capable of deploying data warehouses quickly and handling diverse workloads with minimal infrastructure management.
2. Designing both logical and physical data model. First comes the logical data model. Data engineers walk the documented processes and agree on the core entities, for example, customer, order, device, shipment, claim, and the exact relationships between them, pinning down business keys and the few rules that must always be true.
Once that picture is stable, experts cast it into the physical model:
- each entity becomes a table or a set of tables
- keys are translated into primary-key columns or composite hashes
- data types are chosen to match the source precision while keeping storage and compute costs in view
This is where decisions are made about how each piece of information gets stored, so it can be found fast, stay accurate, and grow over time without breaking the budget. It’s also where the first rules of security are set (who can see which fields).
3. Implementing data pipelines, testing and deploying a data warehouse
Here, your data warehouse begins to breathe. Data starts flowing automatically from sources to the warehouse. For this flow to be consistent and reliable, a whole lot of measures need to be taken:
- Setting up logging and alerting for failures
- Writing transformation scripts (SQL or dbt models)
- Configuring orchestration (e.g., Airflow DAGs for daily runs).
- Implementing incremental loads (only process new/changed data)
- Building data validation checks (record counts, nulls, referential integrity)
Special attention should be given to testing. Hit it from every angle to verify all aspects of data quality. Data accuracy: Does total revenue in DW match source systems? Data completeness: Are all records loaded each day? Transformation logic: Are derived metrics (e.g., average order value) computed correctly? Performance: Are queries fast enough for users?
4. After-launch support and maintenance. After going live, the warehouse should hum along under constant watch. Its health needs to be continuously monitored and issues – flagged and resolved as they arise. When new data sources have to be added or ETL pipelines adjusted, maintenance specialists are supposed to take care of it all.
Where to take it next
Even the smartest data warehouse can hit the same roadblocks every enterprise faces: messy data, fragile pipelines, compliance bottlenecks, and rising costs. Our team can blueprint a warehouse tailored to your stack, covering sources, ETL/ELT flows, security, and KPIs and get a working prototype live in weeks, not months. Turn your scattered data into a foundation that actually drives decisions.
